CERALABEL?SL - 600, 800, 1000
SIGMAX Ltd.

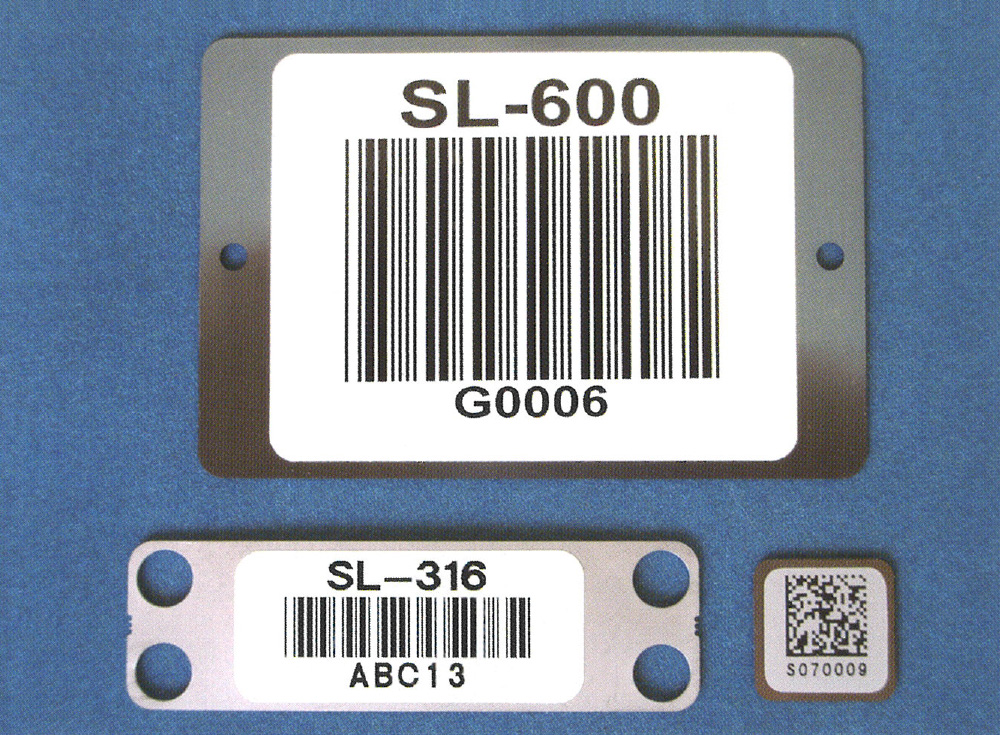

Fired ceramic barcode label fused on stainless steel substrate. Barcode patterns are printed using ceramic ink on a thin ceramic layer that is fired and fused to a heat resistant stainless steel substrate.
Shock resistance was added to the heat and chemical resistance features of ceramic.
|
● |
Heat resistance |
|
|
Maximum heat resistance: 600 ± 50°C, 800 ± 100°C, 1000 ± 200°C |
|
● |
Chemical resistance |
|
|
| Properties |
SL-600 |
SL-800 |
SL-1000 |
| Acid |
H2SO4 (5%、20℃) |
No effect after 100 days |
| H2SO4 (98%、70℃) |
No effect after 3 days |
| HCl (5%、20℃) |
No effect
after 10 days |
No effect
after 1 day |
No effect
after 3 days |
| HNO3 (60%、20℃) |
No effect
after 100 days |
No effect
after 30 days |
No effect
after 100 days |
| Alkali |
NaOH (5%、20℃) |
No effect after 100 days |
| Solvent |
--- |
No effect |
|
|
● |
Weather resistance |
|
|
1) No effect on ceramic layer after 30 cycles salt spray test of under the below condition. |
|
|
| Condition |
Temperature |
Humidity |
Time |
| 5% salt water spray |
35±1°C |
Over 95% |
2 hours |
| Dry hot air |
60±2°C |
--- |
4 hours |
| Wetting |
50±2°C |
Over 95% |
2 hours |
|
|
|
2) No effect after 4000 hours of weather meter test. (Equivalent to 15 years of outdoor use) |
|
● |
Shock resistance |
|
|
The barcode label withstands a shock caused by a 200g steel ball dropped from a height of 50cm with no damage. |
|
● |
Super mini label |
|
|
The minimum short side length of a label can be 2 mm |
|
● |
Other types of CERALABEL SL |
|
|
| 〈SL-GZ〉 |
〈SL-TI〉 |
| An additional transparent glass layer is fused on the barcode label layer to improve chemical resistance. |
Ceramic barcode label is fused on a Titanium substrate to improve substrate chemical resistance. |
 |
 |
|
|
|
| Material |
Heat resistance stainless steel substrate and ceramic layer |
| Thickness |
0.2, 0.4, 0.7, 1.0 mm |
| Mounting |
Screw
Spot welding
Double-sided adhesive tape
Soldering
Pocket method |
| Barcode |
All kind of barcodes including 2D codes |
| PCS |
More than 75% |
|
|
- Beer casks and parts for electric trains that require resistance to heat, chemical and dirt.
- Material moving pallets and containers for automobile parts that require weather resistance and shock resistance.
- Transfer cassettes and carriers for semiconductors and glass substrate for LCD that undergo heat treatment.
|
